High-stability, Current-controlled, Card-based, True-bipolar, Switch-mode Power Converter for Electromagnets
  • Overview
  • Quick View Leaflet
  • Detail Technical Brochure
  • Application Procedure

High-stability, Current-controlled, Card-based, True-bipolar, Switch-mode Power Converter for Electromagnets

Overview

High-stability, Current-controlled, Card-based, True-bipolar, Switch-mode Power Converter for Electromagnets

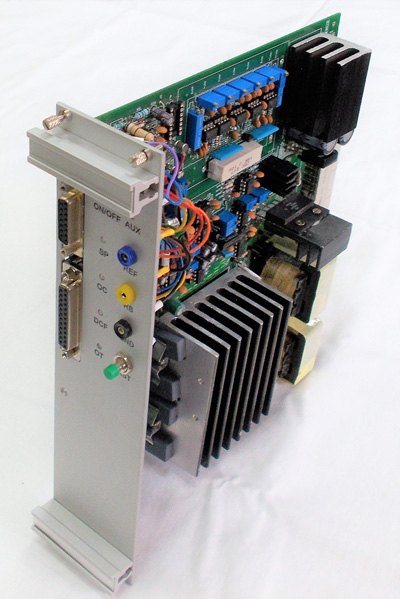

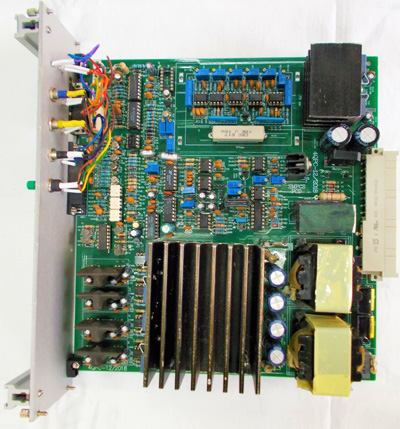

This is a high-stability, output-current-controlled, switch-mode, true-bipolar power converter for electromagnet. The power converter is capable of delivering output voltage (up to ±50 V DC), output current (up to ±15 A DC), and output power (up to 600 W) ratings with minimum alterations. It operates from 60 V max dc input source. The power converter is developed on a single 6U four-layer PCB, complete with power circuit, control electronics and interface electronics for its remote operation. It is equipped with precision current sensor, electronics and on-board constant-temperature bath that provides output current stability within +/- 100 ppm of the full-scale current (for 8 hours after 1 hour of warm-up). It is capable of being operated in both the polarities of output voltage and current, with smooth zero cross-over. Important signals are available on the front panel facilitating in-situ diagnosis/monitoring of the operational status.

High-stability, Current-controlled, Card-based, True-bipolar, Switch-mode Power Converter for Electromagnets

ADVANTAGES

  • Standardized design, which minimum modifications, to cater to various rating within the specified limits.

  • Since it is a single-board design, the manufacturing process is industry-friendly.

  • Commonly available components and processes involved.

  • Commonly available infrastructure in an industry manufacturing electronic systems is sufficient. Minimum investment needed to set-up additional infrastructure, if any.

  • Demonstrated repeatable performance in manufacturing, testing and performance.

  • Rugged, reliable power converter.

  • Output current stability within +/- 100 ppm.

  • True bipolar operation.

  • Easily accessible important signal for in-situ monitoring and diagnosis.

AREAS OF APPLICATION

The power converter is useful to energize electromagnets in particle accelerators and associated beam transport lines used typically for:

  • Food irradiation.

  • Industrial processes like sterilization of medical products, etc.

  • Material processing and modifications.

  • Medical applications.

  • Cargo scanning.

  • Basic research.
Quick View Leaflet

This is a high-stability, output-current-controlled switch-mode, true-bipolar power converter for electromagnet. The power converter is capable of delivering output voltage (up to ±50 V DC), output current (up to ±15 A DC), and output power (up to 600 W) ratings with minimum alterations. It operates from 60 V max dc input source. The power converter is developed on a single 6U four-layer PCB, complete with power circuit, control electronics and interface electronics for its remote operation. It is equipped with precision current sensor, electronics and on-board constant-temperature bath that provides output current stability within +/- 100 ppm of the full-scale current (for 8 hours after 1 hour of warm-up). It is capable of being operated in both the polarities of output voltage and current, with smooth zero cross-over. Important signals are available on the front panel facilitating in-situ diagnosis/monitoring of the operational status.

 SALIENT FEATURES

Input Voltage

:

60 V (max) dc regulated/unregulated (for power electronics)
18 V – 0 – 18 V ± 10%, 50 Hz±3%, 0.5 A ac (for control electronics)

Maximum Output Voltage

:

± 50 V DC

Maximum Output Current

:

± 15 A DC

Output Polarity

:

True-bipolar with smooth zero-crossing.

Maximum Output Power

:

600 W

Load

:

Resistive or resistive-inductive (electromagnet)

Output Current Stability

:

Within ±100 ppm of the full-scale current for 8 hours after 1 hour warm-up

Form Factor

:

Standard 19-inch rack compatible 6U, 12 T card of 220 mm depth

Connector

:

Hybrid (power + control pins) EURO connector

Front Panel

:

6U, 12 T fascia plate

Front Panel Accessories

:

  • 3 mm LED indicators for indication of auxiliary supply, power converter ON/OFF, faults
  • Three test jacks to measure current set reference, current readback
  • A push-button to reset the fault
  • 9-pin sub-D connector to monitor more signals for diagnostics
  • 25-pin sub-D connector for interfacing the power converter for remote operation

Protections

:

  • Output over-current
  • Heatsink over-temperature
  • Two external interlock

Cooling

:

Air natural


High-stability, Current-controlled, Card-based, True-bipolar, Switch-mode Power Converter for Electromagnets

Detail Technical Brochure

High-stability, Current-controlled, Card-based, True-bipolar, Switch-mode Power Converter for Electromagnets

This is a high-stability, output-current-controlled, switch-mode, true-bipolar power converter for electromagnet. The power converter is capable of delivering output voltage (up to ±50 V DC), output current (up to ±15 A DC), and output power (up to 600 W) ratings with minimum alterations. It operates from 60 V max dc input source. The power converter is developed on a single 6U four-layer PCB, complete with power circuit, control electronics and interface electronics for its remote operation. It is equipped with precision current sensor, electronics and on-board constant-temperature bath that provides output current stability within +/- 100 ppm of the full-scale current (for 8 hours after 1 hour of warm-up). It is capable of being operated in both the polarities of output voltage and current, with smooth zero cross-over. Important signals are available on the front panel facilitating in-situ diagnosis/monitoring of the operational status.

PROCESS

Since it is a single-board design, the manufacturing process is industry-friendly. Special manufacturing infrastructure / environment / processes are not required. Standard PCB production, assembly, winding and testing techniques are applicable. All components are normal through-hole component and are available in Indian market.

ADVANTAGES

  • Standardized design, which minimum modifications, to cater to various rating within the specified limits
  • Since it is a single-board design, the manufacturing process is industry-friendly
  • Commonly available components and processes involved
  • Commonly available infrastructure in an industry manufacturing electronic systems is sufficient. Minimum investment needed to set-up additional infrastructure, if any.
  • Demonstrated repeatable performance in manufacturing, testing and performance.
  • Rugged, reliable power converter
  • Output current stability within +/- 100 ppm.
  • True bipolar operation
  • Easily accessible important signal for in-situ monitoring and diagnosis.

SALIENT FEATURES

Input Voltage

:

60 V (max) dc regulated/unregulated (for power electronics)
18 V – 0 – 18 V ± 10%, 50 Hz±3%, 0.5 A ac (for control electronics)

Maximum Output Voltage

:

± 50 V DC

Maximum Output Current

:

± 15 A DC

Output Polarity

:

True-bipolar with smooth zero-crossing.

Maximum Output Power

:

600 W

Load

:

Resistive or resistive-inductive (electromagnet)

Output Current Stability

:

Within ±100 ppm of the full-scale current for 8 hours after 1 hour warm-up

Form Factor

:

Standard 19-inch rack compatible 6U, 12 T card of 220 mm depth

Connector

:

Hybrid (power + control pins) EURO connector

Front Panel

:

6U, 12 T fascia plate

Front Panel Accessories

:

  • 3 mm LED indicators for indication of auxiliary supply, power converter ON/OFF, faults
  • Three test jacks to measure current set reference, current readback
  • A push-button to reset the faults
  • 9-pin sub-D connector to monitor more signals for diagnostics
  • 25-pin sub-D connector for interfacing the power converter for remote operation

Protections

:

  • Output over-current
  • Heatsink over-temperature
  • Two external interlock

Cooling

:

Air natural

AREAS OF APPLICATION

The power converter is useful to energize electromagnets in particle accelerators and associated beam transport lines used typically for:

  • Food irradiation
  • Industrial processes like sterilization of medical products, etc.
  • Material processing and modifications
  • Medical applications
  • Cargo scanning
  • Basic research

FACILITIES REQUIRED

Standard facilities available with a manufacturer of electronic systems such as PCB manufacturing, component soldering, standard mechanical shop floor for assembly etc. are necessary for production. Some of the items (e.g. magnetic components, heatsinks etc.) can also be sub-contracted by the industry if the related infrastructure is not available under the same roof. However, the manufacturer desirous of acquiring the technology should have a complete in-house board assembly facility following IPC 610. Standard test and measurement equipment (meters, oscilloscopes etc.) are sufficient. Various sources of precision meters and sensors are commercially available for the manufacturer to augment the infrastructure.

Who Should apply


Interested parties with Engineering & Scientific knowledge, good financial background and adequate experience of products manufacturing & fabrication with technical capability in the area of interested technology and having or interested in setting –up facilities for production would be preferred.


How to apply

Send your Technology Transfer Application form duly filled and signed alongwith a Demand Draft/Bankers cheque of Rs. 500/- (for Indian entities) or US $50/- (for foreign entities) drawn in favour of “Accounts Officer, BARC” as application processing fee on following address:

Head, Technology Transfer and Collaboration Division
Bhabha Atomic Research Centre,
Trombay, Mumbai – 400 085, India.

Fax : +91-22-25505151


Note:Applications without processing fee as applicable above of Rs. 500/- or US $50/- for each technology will not be considered.
