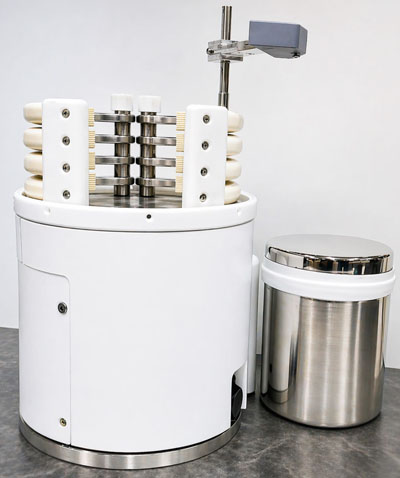

Autonomous Seal Cutting System is aimed to remotely open the seals of containers with hazardous material. The system comprises of rotary table, multi-finger gripper and cutter with protective cover. The system can be operated easily from either operator control panel or Graphical User Interface.

1. Compact, modular and cost effective.
2. Suitable for harsh environment.
3. Multi-finger gripper to provide multi point and rigid gripping.
4. Current controlled cutter to ensure uniform circumferential cutting.
5. Easily replaceable cutter module.

1. The system can be used in the harsh environment for handling hazardous materials.
2. The system is suitable for space constraint applications in the pharma industry where seal of containers/bottles needs to be cut remotely.

The Automated Seal Cutting System is designed to safely and efficiently open sealed containers containing hazardous materials for downstream processing. Built for operation in harsh environments, the system is well-suited for handling hazardous materials. Its compact design makes it ideal for space-constrained applications, particularly in the glove box and pharmaceutical industry where sealed bottles or containers need to be cut reliably and safely.

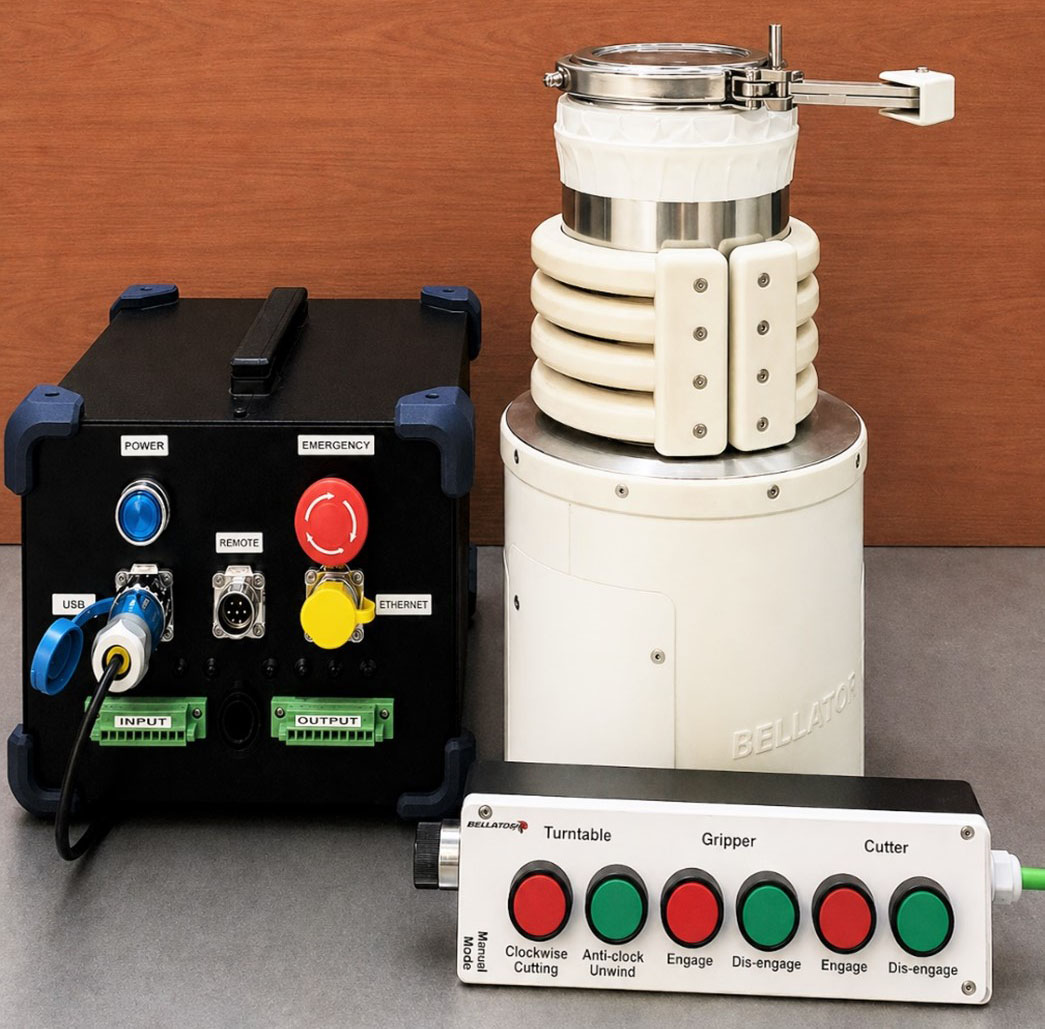

The system is user-friendly and can be operated either through manual controls or via a graphical user interface (GUI), offering flexibility and ease of use.

1. Torque controlled multi-finger gripper with corrugated surface for firm, adaptive and stable handling of containers.
2. Motorized, torque-controlled cutter for ensuring precise and repeatable cutting operation.
3. Compact and Modular design with easily replaceable cutter module.
4. Rotary table integration for efficient handling and positioning of containers.
5. Suitable for harsh environment and space constrained installations.
6. High precision and repeatability through continuous torque regulation.
7. User Friendly operation via control panel or GUI.

Technical Specifications

Sr. No.	Specification	Value
1	System Footprint	<240 mm ( 200 (L) x 230 (W) x 325 (H))/td>
2	Weight	8 kg
3	Total Gripping Force	200 N
4	Power source	230 Volt, 50Hz
5	Cutter	Tungsten Carbide
6	Environment	Suitable for harsh, dusty environmente
7	Operation Modes	Manual and Autoe

1. The system can be used in the harsh environment for handling hazardous materials.
2. The system is suitable for space constraint applications in the pharma industry where seal of containers/bottles needs to be cut remotely.

1. Machining facilities like CNC turning center, Lathe Machine etc. or the various parts can be fabricated from third party vendor and assembled at one place.
2. Assembly facilities like small size press, assembly kits, external/internal circlips pliers, bearing fitting kit, etc.
3. Engineering drafting facility.
4. Electrical cabling and testing facilities.
5. Compute for Software Updates.

The manpower will depend whether in house manufacturing facility for various parts or these parts can be sourced from various vendors and assembled at one place.

1. Electrical/Electronics Engineer -1
2. Diploma/degree in Mechanical -1
3. Fitter and Electrician -1
