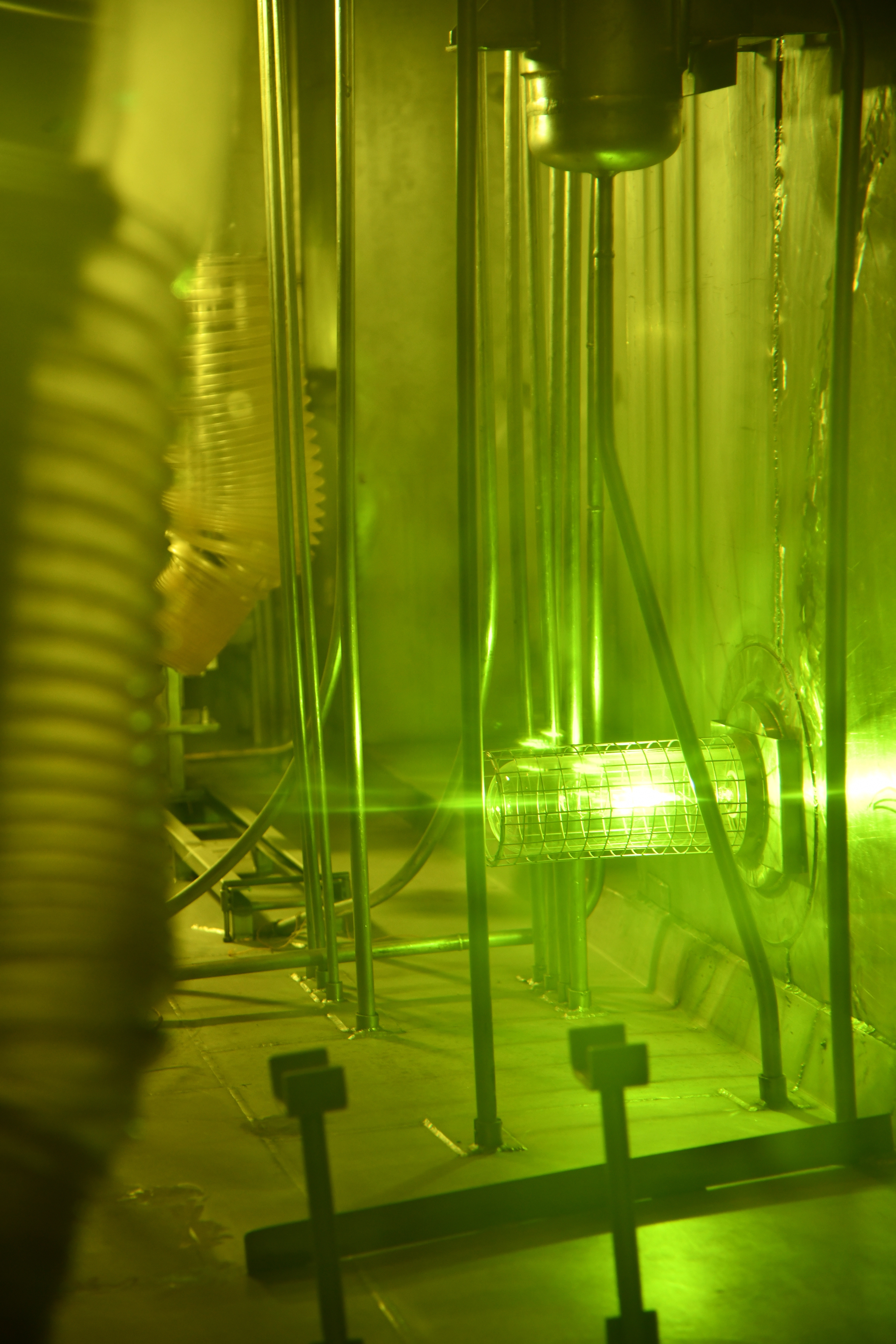

The fixture is remotely operable for mounting fittings inside enclosures with restricted access.
The mechanism is very simple, with no maintainable parts on the stationary unit, easy to operate and maintain remotely. It is a standalone fitting and can be installed from outside the enclosure and without the need of manipulators or any other equipment. Equipped with self-locking feature and no separate mechanism is required to secure the gadget.
A remotely operated self-locking fixture for wall mounted equipment for enclosures with restricted access is a fixture designed with two types of securing arrangement, one meant for permanent engagement with the wall and the other is meant for the transporting the intended instrument / gadget. The mechanism features installation & removal of the instrument / gadget remotely from other side of a partition wall as thick as 2 mtr. or even higher and more importantly the entire operation can be carried out without viewing arrangement, hence no need for in-cell illumination during installation, while the dome fixture will be engaged with the wall in a leak tight manner.
TECHNICAL SPECIFICATIONS
Sr. No. | Specification | Value |
---|---|---|
1 | Stationary Unit | Stainless steel or other suitable material as per end use |
2 | Mobile Unit | Stainless steel or other suitable material as per end use |
3 | Guide Rod | Carbon steel or other suitable material as per end use |
4 | Stationary Unit “O” Ring |
|
5 | Fitting Flange Gasket |
|
6 | Fastners | Stainless steel or other suitable material as per end use |
